High silica casting filter mesh been coated with high-temperature resistant material such as phenolic resin and vermiculite to form rigid sheets or cap. used for filtering melting metal in the casting of grey cast iron, ductile cast iron, steel casting, copper casting and alumina casting.
Compare to ceramic honeycomb filter and ceramic foam filter, it’s more economic.
Series: High strength Molten iron filter
Molten steel filter
Copper alloy filter
Aluminum alloy filter

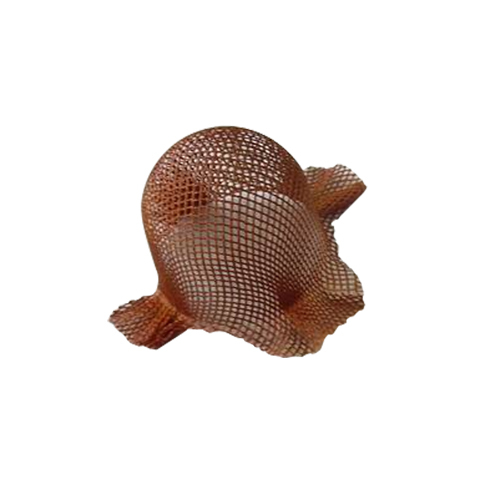

The cap type filter
Function: Make the wasted product of casting reduce by 50 - 60% .
High Silica Fiberglass Mesh Data Sheet | ||||
Molten iron | Molten steel | Copper alloy | Aluminium | |
Work temperature (℃) | 1450 | 1600 | 1200 | 850 |
Lasting working time (Minute) | 10 | 5 | 10 | 10 |
The tensile strength of normal Atmospheric temperature Kg/4 | > 8 | > 16 | > 6 | > 6 |
Emit the quantity of gas (Cm3/g) | < 60 | < 60 | < 60 | < 30 |
Min. mesh size | 1.5×1.5mm | 2.0×2.0mm | 1.5×1.5mm | 1.0×1.0mm |
Available mesh size:1.5×1.5mm, 2×2mm, 2.5×2.5mm |
